LED Controller

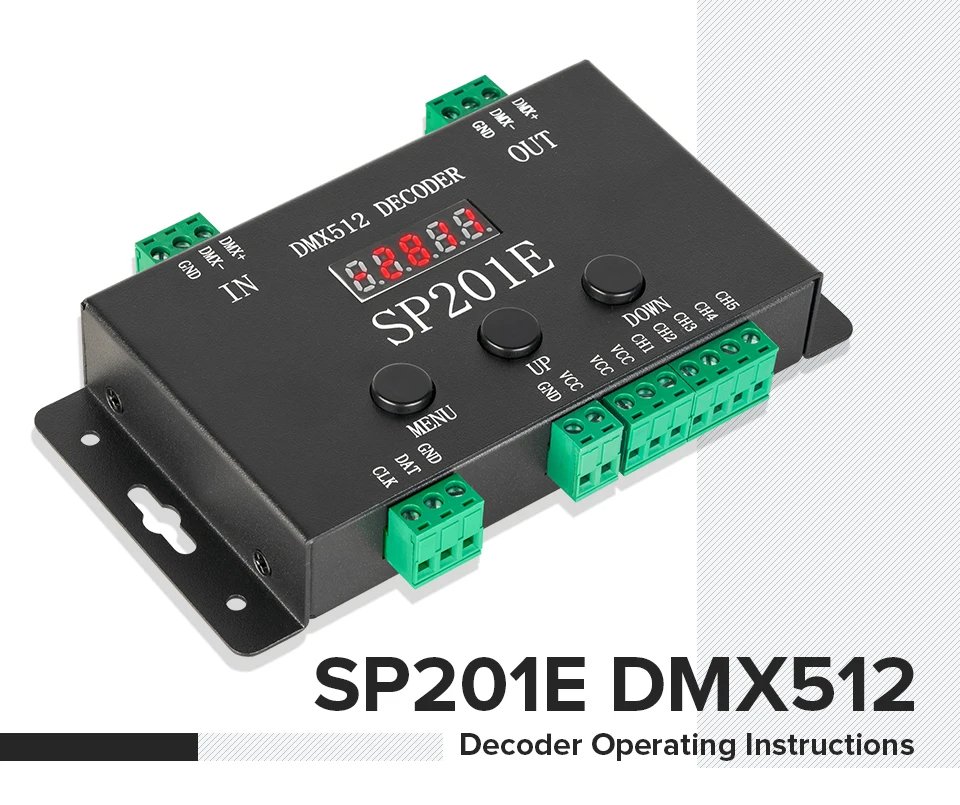

SP201E DMX512 LED Decoder 5CH PWM SPI SK9822 WS2812B WS2811 5050 RGB RGBW CCT FCOB DC5V-24V

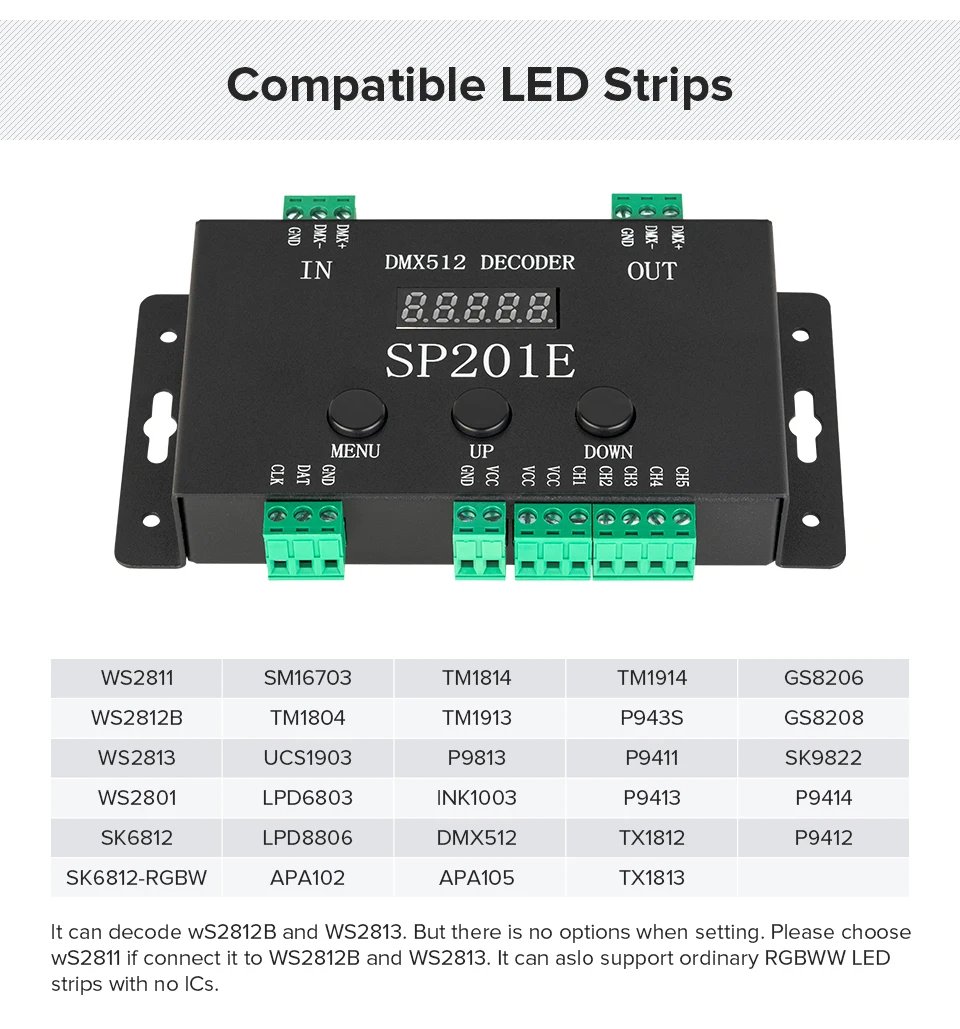

Support almost all the one-wire or two-wire LED driver ICs, such as WS2811,WS2812B, WS2801, SK6812, SK6812-RGBW, WS2813, LPD6803, LPD8806, APA102, TM1913, UCS1903, SM16703, DMX512, etc.
When no DMX signal input, it can work as SPI controller and control up to 1024 pixels. 99 kinds of built-in dynamic color modes are available, such as flash, glow, fading, smooth, chasing, stream, spreading, strobe, which are vivid and beautiful. Speed is adjustable.
When DMX signal input, it can identify DMX512 automatically and work as DMX decoder with standard DMX512 compliant interface. Decoding channels are adjustable.
Compared with other DMX decoders which can only decode one kind of LED, ALITOVE DMX decoder can decode both smart addressable pixel LED and RGBWW 5 channels LED.
The DMX controllers / decoders can be cascaded together and work synchronously. DC 5V~24V wide working voltage; LCD display; Save user setting when power off. Reverse connection protection; hot swap protection.

Category: LED Controller

Description
Reviews (0)

Notice: Customers should take care of the clearance and customs duties.

Features:
1. DC5V~24V wide range of working voltage.
2. IC chipset/built-in mode/speed/decoding channel adjustable.
3. Automatic identification of DMX512 signal.
4. Supporting addressable pixel LED and RGBWW 5 channels LED.
5. Works in single or multiple synchronous cascade modes.

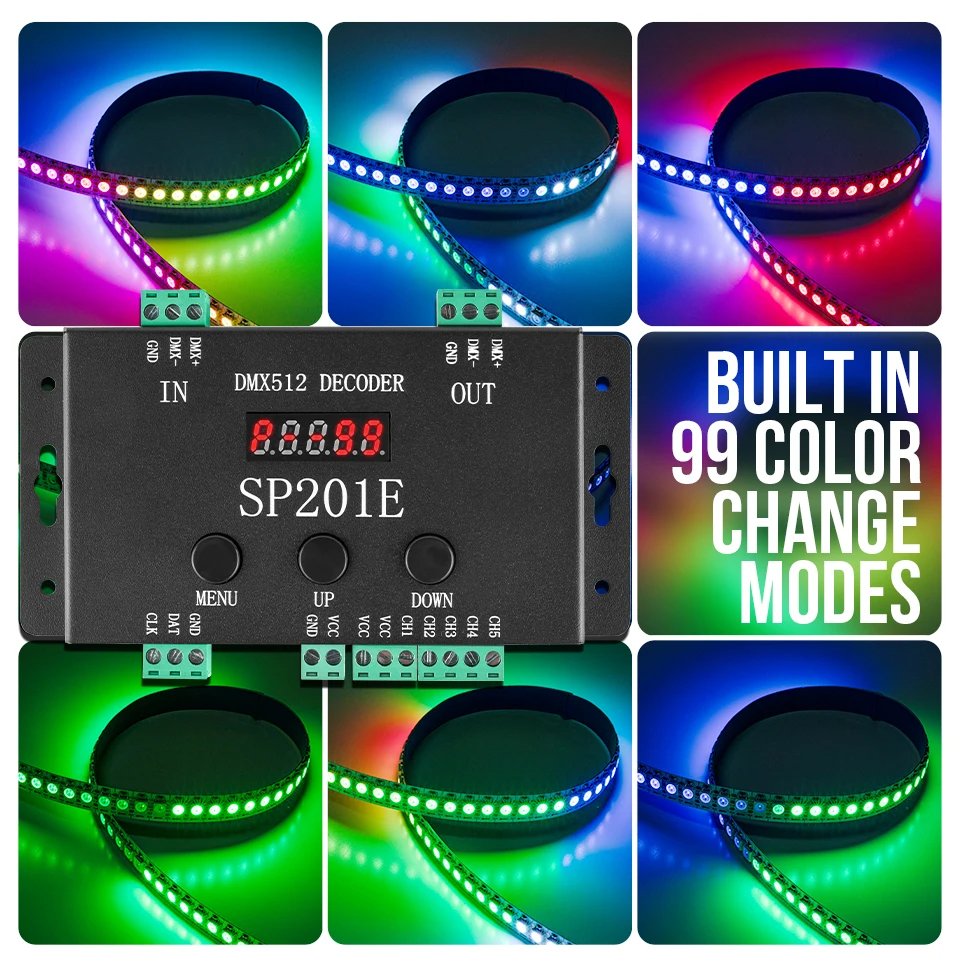

6. With 99 kinds of built-in patterns.
7. User setting saving.

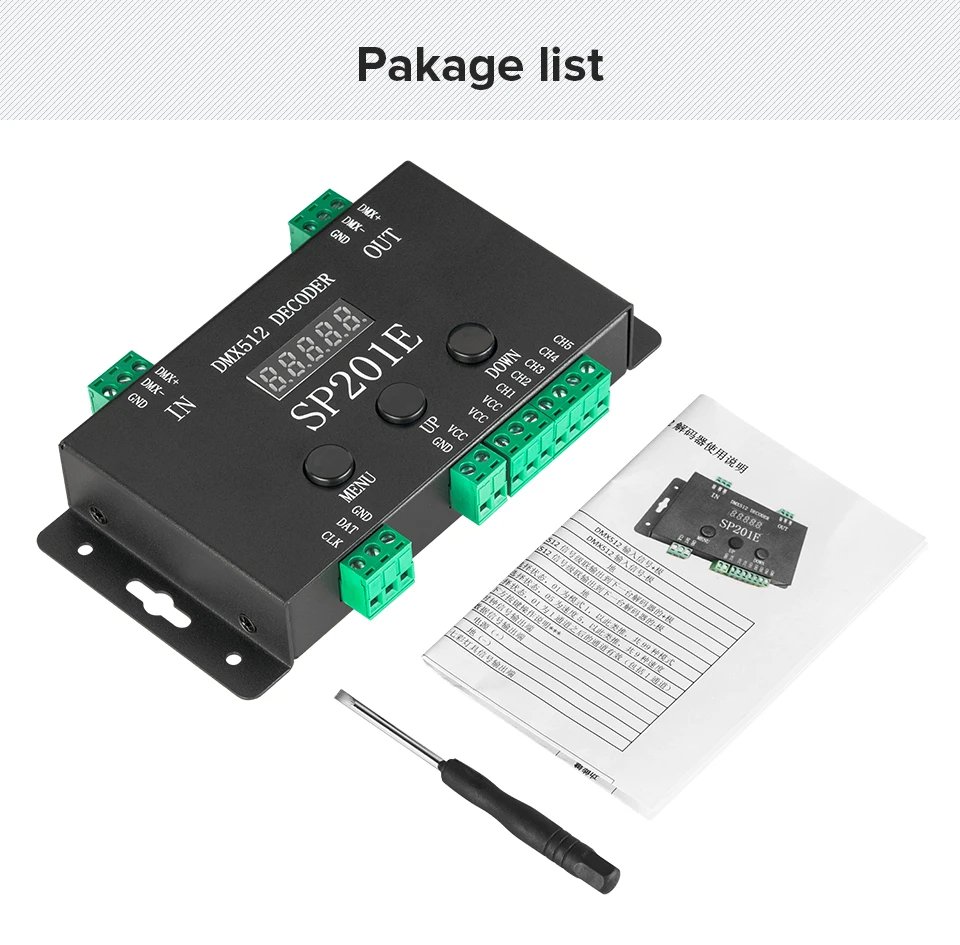

Package:
1 * Decoder Controller.
1 * instructions.
1 * Small screwdriver.
