FCOB RGB IC WS2811 Addressable LED Strip 720 576 LEDs High Density Uniform Dream Full Color 12mm 12V 24V

【Group of LED Addressable】DC24V 2X16.4FT, total 32.8FT 576LED/m, 14IC/m, one WS2811 IC Chip drives 45 LED.Compatible with K1000C etc programmable controllers. Support SP630E SP611E SP105E SP602E SP608E etc APP controllers,CSY08 SP107E etc music controllers, SP530E etc smart WiFi Voice Controllers.Also support other DIY Controller.
【Ultra Bright and Uniform】 Flip Chip On Board LED strip(FCOB).Adopting high brightness LED as the light source to ensure the brightness while maintaining color consistency.Compared with traditional 5050SMD RGB/3528SMD RGB LED strips,FCOB light strips dense light-emitting units create a brighter, softer, more dream color and uniform light, avoiding Black in the middle area.
【Stunning Lighting Effects】Amazing Mixed color producing multi fantasy colors. 3 colors RGB can be mixed into 16 million different colors. Built-in addressable WS2811 IC chip, matching with the correct controller, not only can you adjust various static colors, but also achieve diverse dynamic lighting effects, such as: colorful curtain-up/ flow water/raindrop/jump flash and so on. (Controllers Sold Separately)
【Cuttable and Linkable】BTF-LIGHTING FCOB LED strip is soft and flexible.The interval between the two Cut Mark measures 2.8in (71mm). 3PIN connector on two ends,one is female the other one is male.It also support end to end connect in series.10mm width.
【Shopping With Confidence】COB LED light is more energy efficient.Adopting real double-layer copper PCB board, better electronic conductivity and heat dissipation.More than 50,000 hours lifespan.We also provide 12 months worry-free warranty and 24/7 customer service.For troubleshooting and replacement, or any questions about purchase or installation, please feel free to contact us.
【Wide Application】Our FCOB LED light is perfect for various interior decoration.Such as living room, hallway, bedroom, kitchen, accent lighting, cabinet lighting, stair, mirror, corridor, DIY backlight, DIY lighting, special use and other commercial and residential lighting projects.Come with a strong self adhesive backing.Tips:Before installation, please thoroughly clean and dry the installation surface.

Category: Uncategorized

Description
Reviews (0)

Specification:

Input Voltage: DC12V, DC24V.

IC Type: FCOB RGB WS2811 IC.

Wattage: 12V-12W/m, 24V-21W/m.

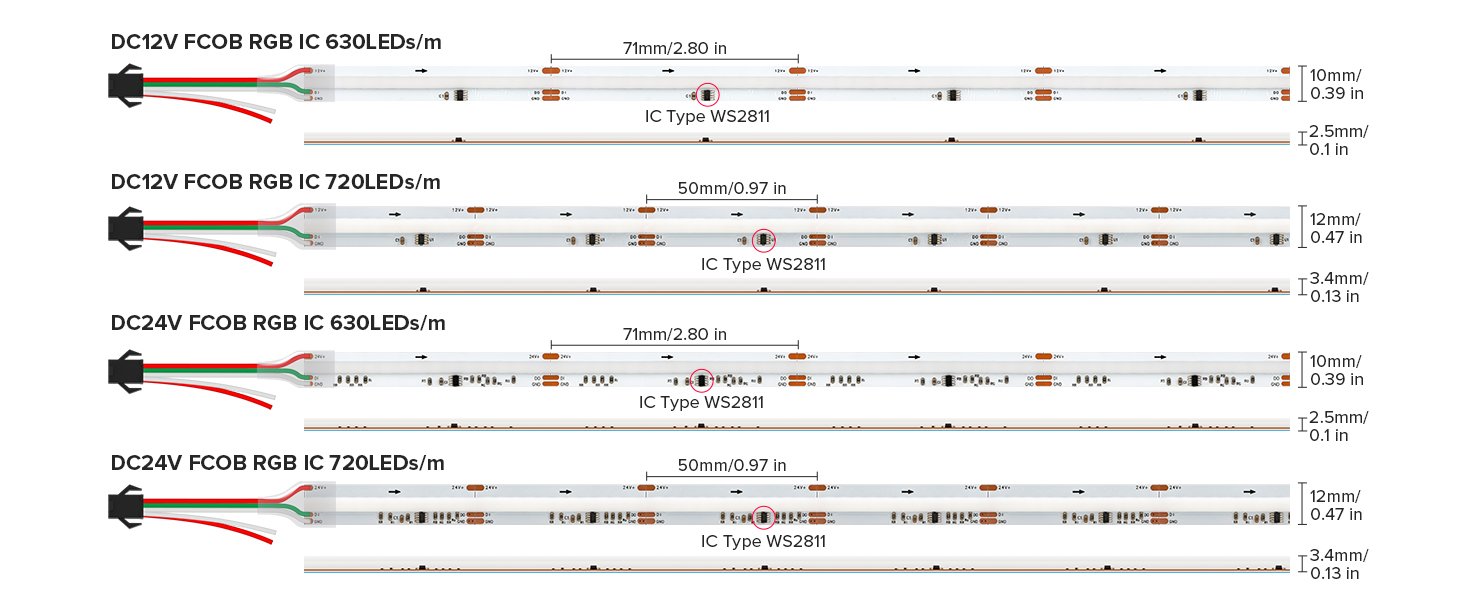

FPCB Width: 720-12mm, 630-10mm.

LED Quantity: 720 LEDs/M, 630 LEDs/M.

Cutting Length: 720-every 50mm, 630-every 100mm / 71mm.

Individually Addressable: every (720-50mm) or (630-100mm / 71mm) can be unique controlled.

Color Rendering Index: Ra＞90.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.View Angle: 180°.

Package:

1 * FCOB 720/630 RGB IC LED Strip (power supply and controller is not included).

Advantages:

1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy-saving and environmental protection, in line with national environmental standards.

Please Note:

Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It’s Not a Quality Problem.
